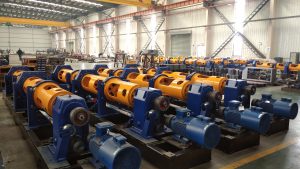

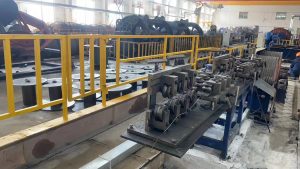

- Machine work
-

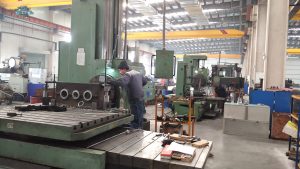

- Machine work
-

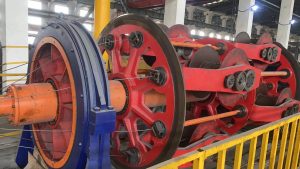

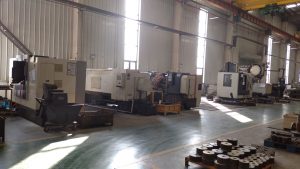

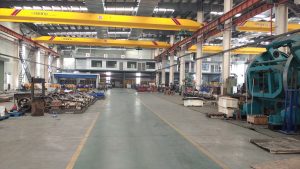

- Corner of workshop
-

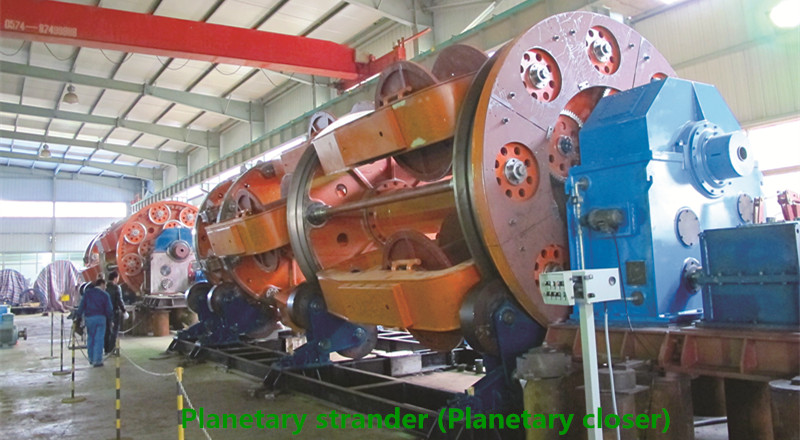

- Planetary strander
-

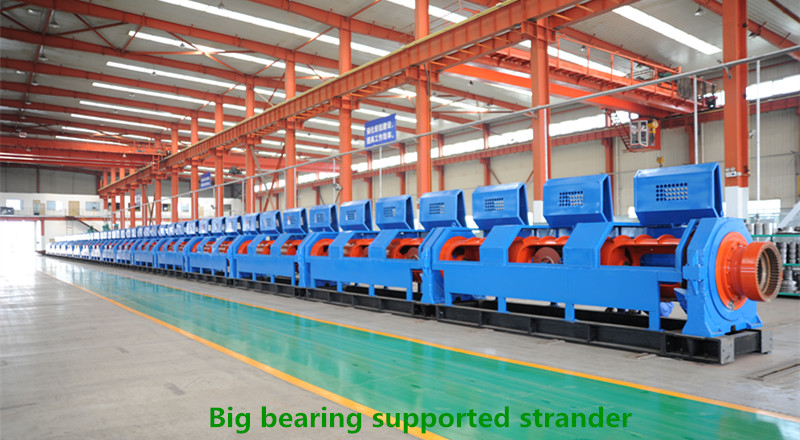

- Big bearing supported strander
-
- Running test
1. Steel Wire Stranding Machine
Steel wire stranding machine as called as steel wire tubular strander, is the special machine that twist a certain number of steel wires into strands of various construction as required. Steel wire stranding machine is composed of cylinder(tube), gearing, pressing, pulling, security, collection and such main units. By variety of construction, steel wire stranding machine is divided into three types, which includes roller supported tubular strander, big bearing supported tubular strander and planetary strander (Planetary closer).
Roller supported tubular strander (roller supported tubular stranding machine) is formed by a few of cylinder body with wire loaded bobbins inside one by one in order. As releasing wires, all the bobbins should always keep horizontal motion while cylinder body rolling at high speed with the pulling power for end collection. Roller supported tubular strander can be provided 6-36 bobbins and even 48 bobbins maximum by various cylinder numbers and sizes of motor power. Since it has smaller land occupation, lower gravity center, smooth running and easy operation, roller supported tubular strander has enjoyed a majority of market for various wire stranding production during past years.
Big bearing supported tubular strander (big bearing supported tubular stranding machine) has achieved more technical improvement on basis of roller supported tubular strander, for instance, definitely higher speed without friction, vibration and noise. Further, big bearing supported strander is provided by variable-speed unit, constant tension control on bobbins, free change on lay length and such active promotion as to win higher working efficiency and strands quality.
Planetary closer is the special mode that wire loaded bobbins are all designed inside the basket-shaped tube (bobbins something like loaded in basket). There is commonly 6-8 bobbins working in planetary closer and the bobbin size is up to the loaded wire diamter and rate of motor power. Due to the slower speed with bigger motion inertia, planetary closer can produce the strands with such advantages as sufficient variant, tight constructure and less stress.
2. Steel Wire Rope Making Machine
Steel wire rope making machine is the specific machine that twist not wires but strands into ropes of various construction as required. Steel wire rope making machine also has the three mainly sorts such as roller supported tubular rope machine, big bearing supported rope machine and planetary closer machine. Steel wire rope making machine has no distinction from wire stranding machine, excepted that the former added preliminary variant, tail variant, grease painting, preliminary tension, turnover mechanism and such more auxiliary devices. The preliminary variant unit is working for making strands with same spiral state as that in rope. The tail variant unit is used to tension, compress and straighten the rope in order to release the stress, tight constructure, stabilize size and win good straightness of the rope finally. Tail variant unit is the necessary device for manufacturing qualified unloosen wire rope. Grease painting device is acted for lubrication and preventing steel wire rope from corrosion by painting grease oil on the rope surface. The preliminary tension device is used to stabilize the rope structure and control the elongation by adjusting the rolling speed of two tensioning wheels.
Manufacturers of steel wire stranding machine and steel wire rope making machine, as for roller supported tubular strander, big bearing supported tubular strander and planetary strander(planetary closer), are mainly distributed in Jiangsu and Zhejiang provinces nearby Shanghai. The price of steel wire rope making machine and steel wire stranding machine should be decided by customer’s different requirement order to order. WE UP started overseas export of steel wire stranding machine and steel wire rope making machine in the year of 2008 and after then has extended more partnerships to global markets and thanksfully won the satisfaction from customers abroad.
Kindly Remind:
As the continuous technical development, steel wire stranding machine and steel wire rope making machine have been designed to more advanced styles and more improved functions involved for customer’s choice. WE UP honestly provides customers the updated technical consultation, project design, quote discussion, visit invitation, order confirmation & fulfillment, quality control, delivery arrangement, overseas installment and each details.
WE UP – Participate Overseas Wire Expo

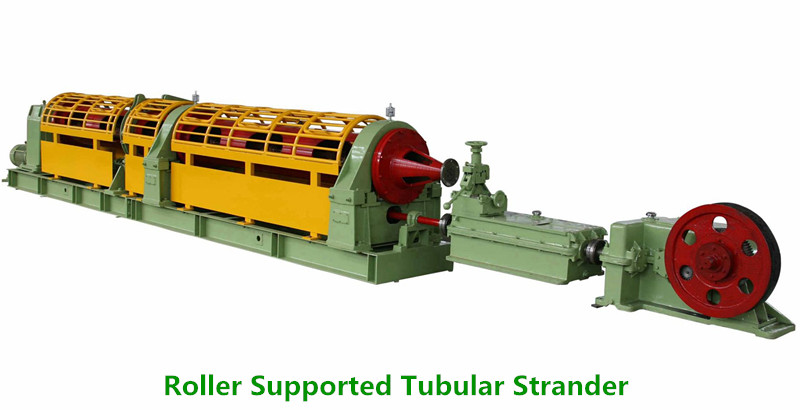

Roller Supported Tubular Strander (Roller Supported Tubular Stranding Machine)
Roller Supported Tubular Wire Rope Machine
| Specification | Inlet wire diameter | Outlet strand /rope diameter | Rolling speed of tube | Lay pitch scope | Diameter of drawing wheel | Motor power | Size of capstan for wire frame | Size of capstan for outputting wire | Size of capstan for rope collection | Dimension |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | r.p.m | mm | mm | kw | (OD*ID*Inner width)mm | (OD*ID*Inner width)mm | (OD*ID*Inner width)mm | (L*W*H) mm | |
| GGTQ6-200 | 0.3-0.8 | 0.6-2.4 | 1600 | 3.85-15.84 | 2*320 | 7.5 | 200*70*100 | 200*70*100 | 400*160*240 | 9100*1120*970 |
| GGTQ12-200 | 0.3-0.8 | 1.0-4.0 | 1350 | 6.24-25.68 | 2*320 | 7.5 | 200*70*100 | 400*160*240 | 500*200*300 | 12000*1120*970 |
| GGTQ18-200 | 0.3-0.8 | 1.4-5.6 | 1100 | 9.91-40.75 | 2*320 | 11 | 200*70*100 | 500*200*300 | 600*240*310 | 15000*1120*970 |
| GGT6-200 | 0.4-0.9 | 1.2-2.7 | 1400 | 8.73-35.91 | 600 | 7.5 | 200*75*130 | 200*75*130 | 500*200*300 | 10415*1400*1355 |
| GGT12-200 | 0.4-0.9 | 2.0-4.5 | 1200 | 12.15-49.96 | 600 | 11 | 200*75*130 | 500*200*300 | 800*400*470 | 16275*1770*1920 |
| GGT18-200 | 0.4-0.9 | 2.8-6.3 | 900 | 17.15-70.56 | 800 | 15 | 200*75*130 | 800*400*470 | 1000*400*600 | 21100*1770*1920 |
| GGT24-200 | 0.4-0.9 | 3.6-8.1 | 750 | 17.15-70.56 | 800 | 18.5 | 200*75*130 | 800*400*470 | 1000*400*600 | 25000*1770*1920 |
| GGT30-200 | 0.4-0.9 | 3.6-8.1 | 650 | 17.15-70.56 | 2*800 | 22 | 200*75*130 | 800*400*470 | 1000*400*600 | 30000*1770*1920 |
| GGT36-200 | 0.4-0.9 | 3.6-8.1 | 550 | 17.15-70.56 | 2*800 | 22 | 200*75*130 | 800*400*470 | 1000*400*600 | 35000*1770*1920 |
| GGT6-300 | 0.6-1.3 | 1.8-3.9 | 1000 | 12.87-52.92 | 600 | 15 | 300*120*180 | 300*120*180 | 800*400*470 | 14380*1800*1980 |
| GGT12-300 | 0.6-1.3 | 3.0-6.5 | 800 | 17.15-70.56 | 800 | 18.5 | 300*120*180 | 800*400*470 | 1000*400*600 | 20985*1800*1980 |
| GGT18-300 | 0.6-1.3 | 4.2-9.1 | 600 | 25.01-102.90 | 800 | 18.5 | 300*120*180 | 800*400*470 | 1000*400*600 | 25450*1800*1980 |
| GGT24-300 | 0.6-1.3 | 5.4-11.7 | 500 | 25.01-102.90 | 2*800 | 22 | 300*120*180 | 1000*400*600 | 1000*400*600 | 30850*1800*1980 |
| GGT30-300 | 0.6-1.3 | 5.4-11.7 | 450 | 25.01-102.90 | 2*800 | 30 | 300*120*180 | 1000*400*600 | 1000*400*600 | 36250*1800*1980 |
| GGT36-300 | 0.6-1.3 | 5.4-11.7 | 400 | 25.01-102.90 | 2*800 | 30 | 300*120*180 | 1000*400*600 | 1000*400*600 | 41900*1800*1980 |
| GGT6-400 | 1.2-2.6 | 3.6-7.8 | 700 380 | 20.26-83.33 | 800 | 18.5 | 400*160*240 | 400*160*240 | 1000*400*600 | 17795*1800*1980 |
| GGT12-400 | 1.2-2.6 | 6.0-13 | 600 320 | 29.35-120.72 | 2*1000 | 22 | 400*160*240 | 1000*400*600 | 1300*630*760 | 26753*2110*2400 |
| GGT18-400 | 1.2-2.6 | 8.4-18.2 | 500 265 | 42.12-173.25 | 2*1000 | 30 | 400*160*240 | 1000*400*600 | 1300*630*760 | 34421*2110*2400 |
| GGT24-400 | 1.2-2.6 | 10.8-23.4 | 400 210 | 48.50-199.52 | 2*1200 | 30 | 400*160*240 | 1000*400*600 | 1600*800*800 | 41452*2110*2400 |
| GGT30-400 | 1.2-2.6 | 10.8-23.4 | 245 145 | 48.50-199.52 | 2*1200 | 37 | 400*160*240 | 1000*400*600 | 1600*800*800 | 48220*2110*2400 |
| GGT36-400 | 1.2-2.6 | 10.8-23.4 | 245 145 | 48.50-199.52 | 2*1200 | 37 | 400*160*240 | 1000*400*600 | 1600*800*800 | 55388*2110*2400 |
| GGT6-500 | 1.5-4.0 | 4.5-12 | 500 200 | 40.46-166.44 | 2*1000 | 22 | 500*200*300 | 500*200*300 | 1300*630*760 | 21790*2110*2400 |
| GGT12-500 | 1.5-4.0 | 7.5-20 | 400 160 | 48.50-199.52 | 2*1200 | 30 | 500*200*300 | 1000*400*600 | 1600*800*800 | 31010*2110*2400 |
| GGT18-500 | 1.5-4.0 | 10.5-28 | 280 160 | 75.77-311.69 | 2*1200 | 37 | 500*200*300 | 1000*400*600 | 1600*800*800 | 40680*2110*2400 |
| GGT24-500 | 1.5-4.0 | 10.5-28 | 280 160 | 75.77-311.69 | 2*1400 | 45 | 500*200*300 | 1000*400*600 | 1600*800*800 | 50000*2110*2400 |
| GGT30-500 | 1.5-4.0 | 10.5-28 | 280 160 | 75.77-311.69 | 2*1400 | 55 | 500*200*300 | 1000*400*600 | 1600*800*800 | 60000*2110*2400 |
| GGT36-500 | 1.5-4.0 | 10.5-28 | 280 160 | 75.77-311.69 | 2*1400 | 75 | 500*200*300 | 1000*400*600 | 1600*800*800 | 68000*2110*2400 |
| GST6-300 | N/A | 1.8-6.0 | 700 | 12.87-52.92 | 600 | 15 | 300*120*180 | 300*120*180 | 800*400*470 | 15970*1800*1980 |
| GST6-400 | N/A | 3.0-12 | 500 270 | 20.26-83.33 | 800 | 18.5 | 400*160*240 | 400*160*240 | 1000*400*600 | 18160*1800*1980 |
| GST6-500 | N/A | 6.0-18 | 500 270 | 40.46-166.44 | 2*1000 | 22 | 500*200*300 | 500*200*300 | 1300*630*760 | 22832*2110*2400 |
| GST8-500 | N/A | 6.0-18 | 500 270 | 40.46-166.44 | 2*1000 | 30 | 500*200*300 | 500*200*300 | 1300*630*760 | 25000*2110*2400 |
| GST12-500 | N/A | 10.0-12.0 | 400 160 | 48.50-199.52 | 2*1200 | 30 | 500*200*300 | 1000*400*600 | 1600*800*800 | 32060*2110*2400 |
| GST6-630 | N/A | 9.0-26 | 234 140 | 60.87-250.4 | 2*1200 | 37 | 630*250*400 | 800*400*470 | 1300*630*760 | 26800*2200*2500 |
| GST8-630 | N/A | 9.0-26 | 234 140 | 60.87-250.4 | 2*1200 | 45 | 630*250*400 | 800*400*470 | 1300*630*760 | 30158*2200*2500 |
| GST6-800 | N/A | 9.0-30 | 250 150 | 50-300 | 2*1600 | 55 | 800*400*470 | 800*400*470 | 1600*800*800 | 30190*2190*2440 |
Big Bearing Supported Tubular Strander (Big Bearing Supported Tubular Stranding Machine)
Big Bearing Supported Rope Making Machine
| Specification | Inlet wire diameter | Rolling speed of tube | Lay pitch scope | Diameter of drawing wheel | Motor power | Size of capstan for wire frame | Size of capstan for outputting wire | Size of capstan for rope collection | Dimension |
|---|---|---|---|---|---|---|---|---|---|
| mm | r.p.m | mm | mm | kw | (OD*ID*Inner width)mm | (OD*ID*Inner width)mm | (OD*ID*Inner width)mm | (L*W*H) mm | |
| GGZQ6-200 | 0.3-0.8 | 1800 | 3.85-15.84 | 2*320 | 11 | 200*70*100 | 200*70*100 | 400*160*240 | 8800*1200*1000 |
| GGZQ12-200 | 0.3-0.8 | 1600 | 6.24-25.68 | 2*320 | 15 | 200*70*100 | 400*160*240 | 500*200*300 | 12000*1200*1000 |
| GGZQ18-200 | 0.3-0.8 | 1500 | 9.91-40.75 | 2*320 | 15 | 200*70*100 | 500*200*300 | 600*240*310 | 15000*1200*1000 |
| GGZ6-200 | 0.4-0.9 | 1600 | 8.73-35.91 | 2*600 | 11 | 200*75*130 | 200*75*130 | 500*200*300 | 10500*1580*1970 |
| GGZ12-200 | 0.4-0.9 | 1500 | 12.15-49.96 | 2*600 | 15 | 200*75*130 | 500*200*300 | 800*400*470 | 18000*1780*1970 |
| GGZ18-200 | 0.4-0.9 | 1400 | 17.15-70.56 | 2*800 | 18.5 | 200*75*130 | 800*400*470 | 1000*400*600 | 22000*1780*1970 |
| GGZ24-200 | 0.4-0.9 | 1200 | 17.15-70.56 | 2*800 | 30 | 200*75*130 | 800*400*470 | 1000*400*600 | 25500*1780*1970 |
| GGZ30-200 | 0.4-0.9 | 1000 | 17.15-70.56 | 2*800 | 37 | 200*75*130 | 800*400*470 | 1000*400*600 | 31000*1780*1970 |
| GGZ36-200 | 0.4-0.9 | 800 | 17.15-70.56 | 2*800 | 37 | 200*75*130 | 800*400*470 | 1000*400*600 | 36000*1780*1970 |
| GGZ6-300 | 0.6-1.3 | 1300 | 12.87-52.92 | 2*800 | 22 | 300*120*180 | 300*120*180 | 800*400*470 | 15000*1800*2000 |
| GGZ12-300 | 0.6-1.3 | 1100 | 17.15-70.56 | 2*800 | 30 | 300*120*180 | 800*400*470 | 1000*400*600 | 21000*1800*2000 |
| GGZ18-300 | 0.6-1.3 | 1000 | 25.01-102.90 | 2*800 | 30 | 300*120*180 | 800*400*470 | 1000*400*600 | 26000*1800*2000 |
| GGZ24-300 | 0.6-1.3 | 800 | 25.01-102.90 | 2*800 | 37 | 300*120*180 | 1000*400*600 | 1000*400*600 | 31000*1800*2000 |
| GGZ30-300 | 0.6-1.3 | 700 | 25.01-102.90 | 2*800 | 45 | 300*120*180 | 1000*400*600 | 1000*400*600 | 37000*1800*2000 |
| GGZ36-300 | 0.6-1.3 | 700 | 25.01-102.90 | 2*800 | 45 | 300*120*180 | 1000*400*600 | 1000*400*600 | 42000*1800*2000 |
| GGZ6-400 | 1.2-2.6 | 850 | 20.26-83.33 | 2*800 | 30 | 400*160*240 | 400*160*240 | 1000*400*600 | 18000*2100*2400 |
| GGZ12-400 | 1.2-2.6 | 750 | 29.35-120.72 | 2*1000 | 37 | 400*160*240 | 1000*400*600 | 1300*630*760 | 27000*2110*2400 |
| GGZ18-400 | 1.2-2.6 | 650 | 42.12-173.25 | 2*1000 | 45 | 400*160*240 | 1000*400*600 | 1300*630*760 | 35000*2110*2400 |
| GGZ24-400 | 1.2-2.6 | 550 | 48.50-199.52 | 2*1200 | 55 | 400*160*240 | 1000*400*600 | 1600*800*800 | 42000*2110*2400 |
| GGZ30-400 | 1.2-2.6 | 500 | 48.50-199.52 | 2*1200 | 75 | 400*160*240 | 1000*400*600 | 1600*800*800 | 49000*2110*2400 |
| GGZ36-400 | 1.2-2.6 | 500 | 48.50-199.52 | 2*1200 | 75 | 400*160*240 | 1000*400*600 | 1600*800*800 | 56000*2110*2400 |
| GGZ6-500 | 1.5-4.0 | 650 | 40.46-166.44 | 2*1000 | 45 | 500*200*300 | 500*200*300 | 1300*630*760 | 22000*2110*2400 |
| GGZ12-500 | 1.5-4.0 | 600 | 48.50-199.52 | 2*1200 | 55 | 500*200*300 | 1000*400*600 | 1600*800*800 | 32000*2110*2400 |
| GGZ18-500 | 1.5-4.0 | 500 | 75.77-311.69 | 2*1200 | 75 | 500*200*300 | 1000*400*600 | 1600*800*800 | 41000*2110*2400 |
| GGZ24-500 | 1.5-4.0 | 400 | 75.77-311.69 | 2*1400 | 90 | 500*200*300 | 1000*400*600 | 1600*800*800 | 51000*2110*2400 |
| GGZ30-500 | 1.5-4.0 | 350 | 75.77-311.69 | 2*1400 | 110 | 500*200*300 | 1000*400*600 | 1600*800*800 | 61000*2110*2400 |
| GGZ36-500 | 1.5-4.0 | 350 | 75.77-311.69 | 2*1400 | 110 | 500*200*300 | 1000*400*600 | 1600*800*800 | 69000*2110*2400 |
| GGZ6-630 | 2.0-7.0 | 500 | 39-170 | 2*1200 | 75 | 630*250*400 | 800*400*470 | 1300*630*760 | 29000*2200*2500 |
| GGZ12/630 | 2.0-7.0 | 450 | 60-300 | 2*1200 | 90 | 630*250*400 | 1000*400*600 | 1600*800*800 | 41000*2500*2500 |
| GGZ18/630 | 2.0-7.0 | 400 | 85-420 | 2*1200 | 110 | 630*250*400 | 1300*630*760 | 1800*850*1100 | 53000*2500*2600 |
| GGZ24-630 | 2.0-7.0 | 350 | 110-550 | 2*1400 | 132 | 630*250*400 | 1650*800*1000 | 2000*900*1220 | 65000*2500*2600 |
| GGZ30/630 | 2.0-7.0 | 300 | 110-550 | 2*1600 | 160 | 630*250*400 | 1650*800*1000 | 2000*900*1220 | 77000*2500*2600 |
| GGZ36/630 | 2.0-7.0 | 250 | 110-550 | 2*1600 | 200 | 630*250*400 | 1650*800*1000 | 2000*900*1220 | 89000*2500*2600 |
| GSZ6/760 | 3.0-9.0 (wire) 9.0-30 (rope) | 450 | 50-300 | 2*1400 | 110 | 760*400*430 | 760*400*430 | 1600*800*800 | 32000*2500*2500 |
Steel Wire Rope Making Machine – Planetary Strander (Planetary Closer)
| Specification | Outlet strand/rope diameter | Rolling speed of tube | Lay pitch scope | Diameter of drawing wheel | Motor power | Size of capstan for wire frame | Size of capstan for outputting wire | Size of capstan for rope collection | Dimension |
|---|---|---|---|---|---|---|---|---|---|
| mm | r.p.m | mm | mm | kw | (OD*ID*Inner width) mm | (OD*ID*Inner width) mm | (OD*ID*Inner width) mm | (L*W*H) mm | |
| KS6-600 | 10-25 | 0-90 | 60-250 | 2*1200 | 18.5 | 600*240*370 | 800*240*520 | 1600*630*950 | 17530*2000*3440 |
| KS6-800 | 15-35 | 0-70 | 70-300 | 2*1600 | 22 | 800*400*470 | 800*400*470 | 2000*800*1100 | 25400*2260*4000 |
| KS6-1000 | 25-45 | 0-60 | 100-450 | 2*1800 | 37 | 1000*400*600 | 1000*400*600 | 2200*850*1200 | 35000*3500*4500 |
| KS8-1000 | 25-50 | 0-60 | 100-450 | 2*1800 | 45 | 1000*400*600 | 1000*400*600 | 2200*850*1200 | 35000*3800*4500 |
| KS6-1250 | 30-70 | 0-45 | 150-520 | 2*2500 | 55 | 1250*650*800 | 1250*650*800 | 2600*1000*1500 | 45000*4000*5000 |
| KS8-1250A | 30-90 | 0-40 | 150-650 | 2*2500 | 90 | 1250*650*800 | 1900*900*1100 | 3000*1200*1600 | 50000*4000*5000 |
| KS8-1250B | 30-120 | 0-40 | 150-850 | 2*2500 | 90 | 1250*650*800 | 1900*900*1100 | 3000*1200*1600 | 50000*4000*5000 |
| KS8-1650 | 40-120 | 0-35 | 250-950 | 2*3000 | 90 | 1650*800*1000 | 1650*800*1800 | 3500*1200*1800 | 55000*5000*5500 |
| KS8-1850 | 40-170 | 0-30 | 250-1300 | 2*4000 | 160 | 1850*950*1100 | 2500*1200*1800 | 3500*1200*4000 | 65000*8000*7000 |
| KS8-2000 | 50-200 | 0-30 | 300-1500 | 2*5000 | 250 | 2000*900*1200 | 3000*1600*3000 | 5000*2000*5000 | 75000*8000*9000 |
steel wire strander
Steel wire strander (Rope making machine)
