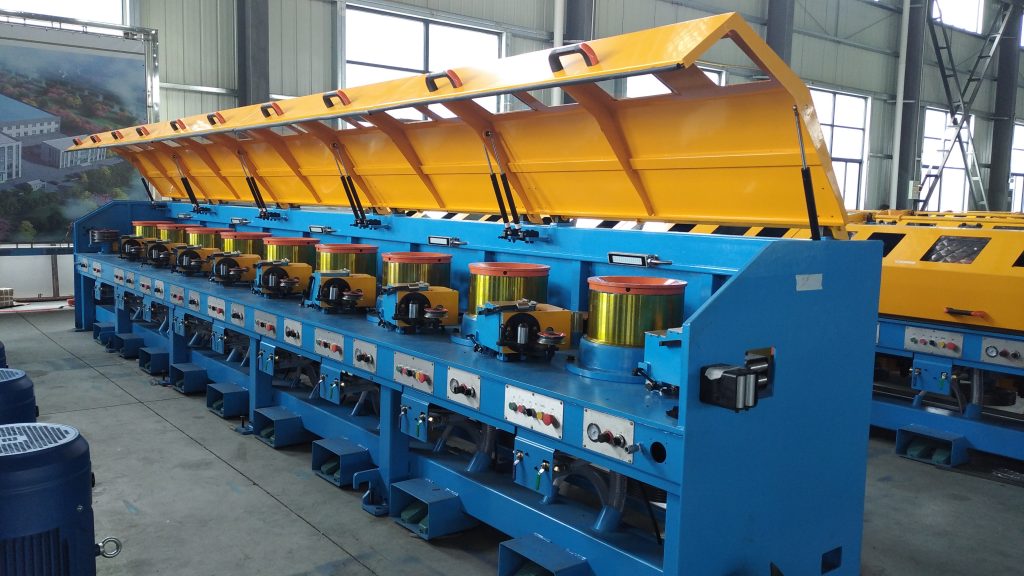

Straight line wire drawing machine is used for producing various kind of wires, such as high carbon steel wire, medium carbon steel wire, low carbon steel wire, welding wire, prestressed concrete wire, stainless steel wire, tyre bead wire, brass coated rubber hose reinforcement wire, copper wire, cable wire and such metal wires.
Straight line wire drawing machine uses the water cooling system for reels and dies as to get the excellent cooling effect during wire drawing process. It can win the higher power transmission efficiency and lower noise for smoothful drawing. Further it has total enclosed device for maximum safety throughout manufacture. In addtion that, as programmed control system and variable frequency conversion have been applied for the operating system, straight line wire drawing machine can be easily operated on screen display with highly automated system, and so that definitely higher efficiency with qualified wires can be both reach.
Straight line wire drawing machine manufacturers are mainly distributed in the east of China nearby Shanghai especially in Jiangsu province. Straight line wire drawing machine price should be decided by customer’s different requirement order to order. WE UP has promoted the straight line wire drawing machinery into overseas markets since the year of 2009 and thanksfully won the satisfaction from customers abroad.
Kindly Remind:
As the continuous technical development, straight line wire drawing machine has been designed to more advanced styles and more improved functions involved for customer’s choice. WE UP honestly provides customers the updated technical consultation, project design, quote discussion, visit invitation, order confirmation & fulfillment, quality control, delivery arrangement, overseas installment and each details.
Straight line wire drawing machine
| Item | Unit | LZ9/900 | LZ9/800 | LZ9/700 | LZ10/560 | LZ10/400 |
|---|---|---|---|---|---|---|
| Diameter of capstan | mm | 900-1200 | 800 | 700 | 560(600) | 400(450) |
| Drawing passages | passes | 9 | 9 | 9 | 10 | 10 |
| Inlet wire diameter (Max) | mm | 14-8 | 10-8 | 8-6.5 | 6.5-5.5 | 2.8-2 |
| Outlet wire diameter (Min) | mm | 5-3 | 4-3 | 3-2.5 | 2-1.8 | 1-0.8 |
| Drawing speed | m/minute | 300 | 360 | 480 | 720 | 840 |
| Inlet wire strength | mpa | <= 1300 | <= 1300 | <= 1300 | <= 1300 | <=1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.45-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
